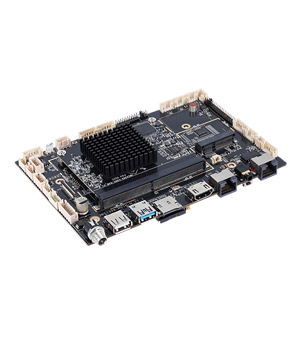

Touchfly industrial motherboard JWS3399-MAIN-N

Touchfly JWS3399-MAIN-N industrial motherboard RK3399 64Bit Dual-core Cortex-A72 Cortex-A53 4G memory Quad-core ARM GPU Android7.1/9.0.
Motherboard Model
Motherboard Size
160mm x 109mm
Android Industrial Motherboard
RK3399 64Bit Dual-core Cortex-A72 Cortex-A53 4G memory Quad-core
Quad-core ARM Mali-T860MP4 GPU
EMMC 32G(8/16/64G optional,maximum 64G)
Maximum 3840*2160
Android 7.1/9.0
4G、5G、Ethernet,WiFi/BT,Wireless peripheral extension
USB 3.0 standard*1,USB 2.0 standard*1,USB 2.0 interface*4
Serial Port
RS232*2,485*1,TTL*2,DEBUG port*1
Dual frequency WIFI and single-antenna supported
Built-in MINPCIE 4G module interface, M.2 5G module interface
LVDS*1(single/dual channel),support 50/60Hz LCD panel
Support Multi-resolution EDP interface LCD panel
HDMI*1, support 1080P@60Hz,4kx2k@60Hz output

Send RFQ

Motherboard Model: JWS3399-MAIN-N

    Required fields are marked *, We’ll respond within 12 hours.

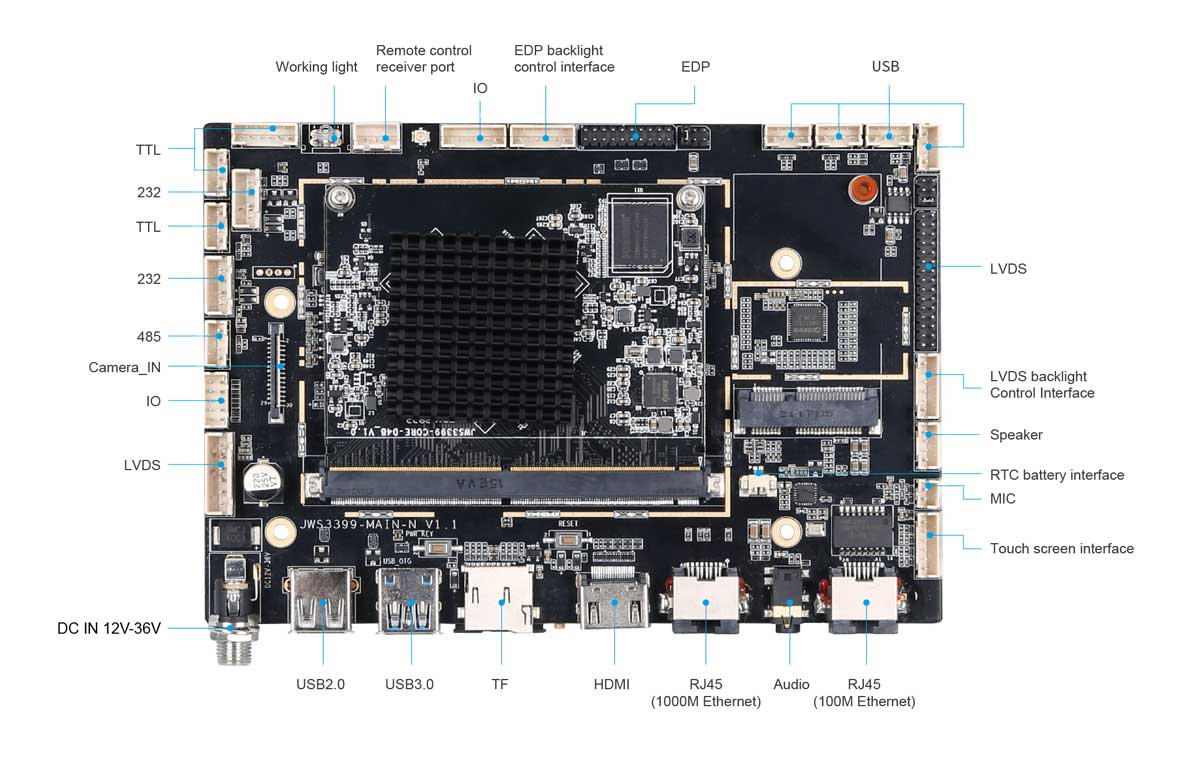

    Touchfly JWS3399-MAIN-N Motherboard

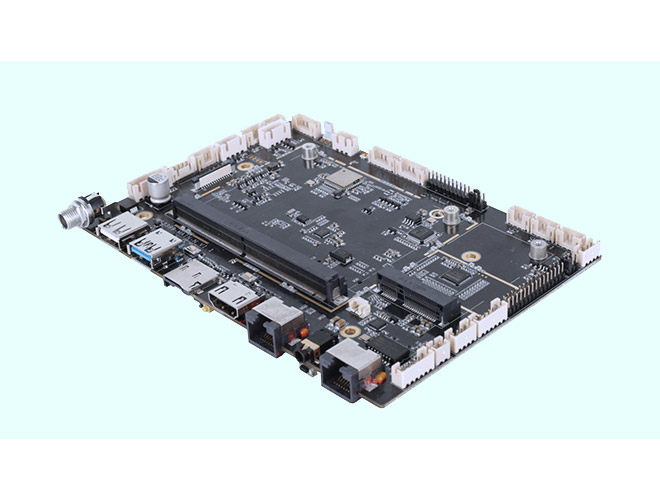

    About JWS3399-MAIN-N Motherboard

    Touchfly JWS3399-MAIN-N adopts RK3399 dual Cortex-A72 large core + four Cortex-A53 small core 64-bit super CPU, main frequency 1.8GHz, adopts Mali-T860 GPU, supports 4K, H.265 hard decoding, Android7.1/ 9.0 system.

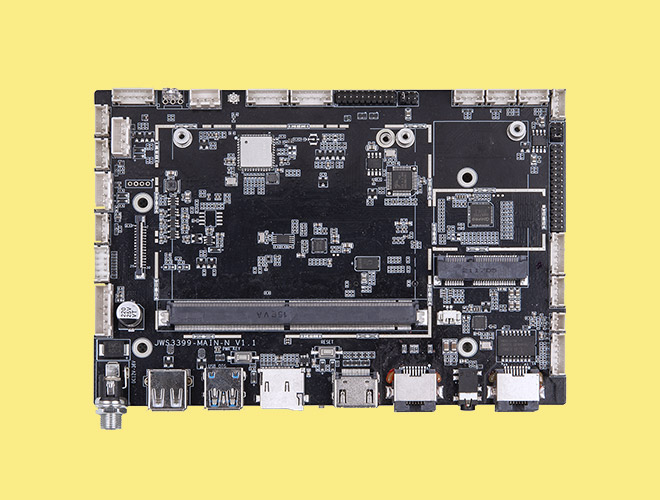

    JWS3399 MAIN L Motherboard
    RK3399 CHIP

    Quad-core Strong Core High-speed Engine

    Using RK3399 dual Cortex-A72 large core + four Cortex-A53 small core 64-bit super CPU, main frequency 1.8GHz

    High Definition Display

    It supports 4K decoding up to 3840×2160, supports LVDS/eDP/HDMI and other LCD displays, cropped screens, and supports dual-screen display.
    high definition display

    API interface

    Android system customization, provide API interface debugging code, support APP secondary development.
    JWS3399-MAIN-N API interface

    Multiple network interfaces

    Multiple network interfaces: 100M, 1000M Ethernet interface, support 5G and 2.4GWIFI, independent dual antenna, built-in PCI-E 3G/4G module interface, support Internet access and calls.

    Rich Expansion Interfaces

    Rich expansion interfaces: 7 USB interfaces (2 USB standard interfaces, 1 TYPEC, 4 2.0 sockets), 1 485 interface, 4 scalable serial ports (2 TTL (one with hard flow control), 2 RS232), GPIO and ADC interface, which can meet the requirements of various peripherals on the market.
    JWS3399-MAIN-G API-interface
    Support More Touch screens

    Support More Touch screens

    Support a variety of mainstream touch screens It perfectly supports various mainstream touch screens such as infrared, optical, capacitive, resistive, and touch film, and supports HID configuration of drive-free touch screens without debugging.

    Multiple Security Protection

    Meet wide temperature (-10℃~60℃), wide voltage (DC12V~36V), EMI/EMC level anti-interference, ESD standard anti-static. Independent research and development of motherboards, selected parts, and technical endorsement.
    JWS3399-MAIN-G Multiple Security
