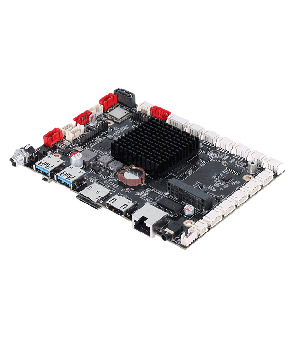

CX3568-A
![Touchfly industrial motherboard CX3568-A](/images/CX3568-A-Pre.jpg)
CX3568-A is a RK3568 industrial motherboard, equipped with a quad-core 64-bit high-performance Cortex-A55 processor, With a main frequency of 2.0GHz, Offering high and powerful computing capability, Smooth operation under multitasking.
Manufacturer
Touchfly
Motherboard Model
CX3568-A
Motherboard Size
140mm x 100mm
Category
Android Industrial Motherboard
CPU
RK3568 64Bit Quad Core Cortex-A55 2.0GHz
GPU
ARM Mail-G52 2EE GPU
Memory
2GB LPDDR4
Storage
EMMC 32GB
ROM
4KB EEPROM
Resolution
4K/60HZ
OS
Android 12
Network
4G,Ethernet,WiFi/BT5.0,Wireless peripheral extension
USB
USB3.0*2(HOST*1,OTG*1)
Serial Port
RS232*2,485*1,TTL*2,CAN port*1
SATA
SATA socket*1
WIFI、BT
Built-in 2.4G WIFI, BT5.2
4G
Built-in MINIPCIE 4G module socket
Ethernet
1000M*1
LVDS
Dual-channel LVDS port*1
eDP
x4 eDP port*1
RHDMI
Standard HDMI2.0 port
Send RFQ
Motherboard Model: CX3568-A
Required fields are marked *, We’ll respond within 12 hours.

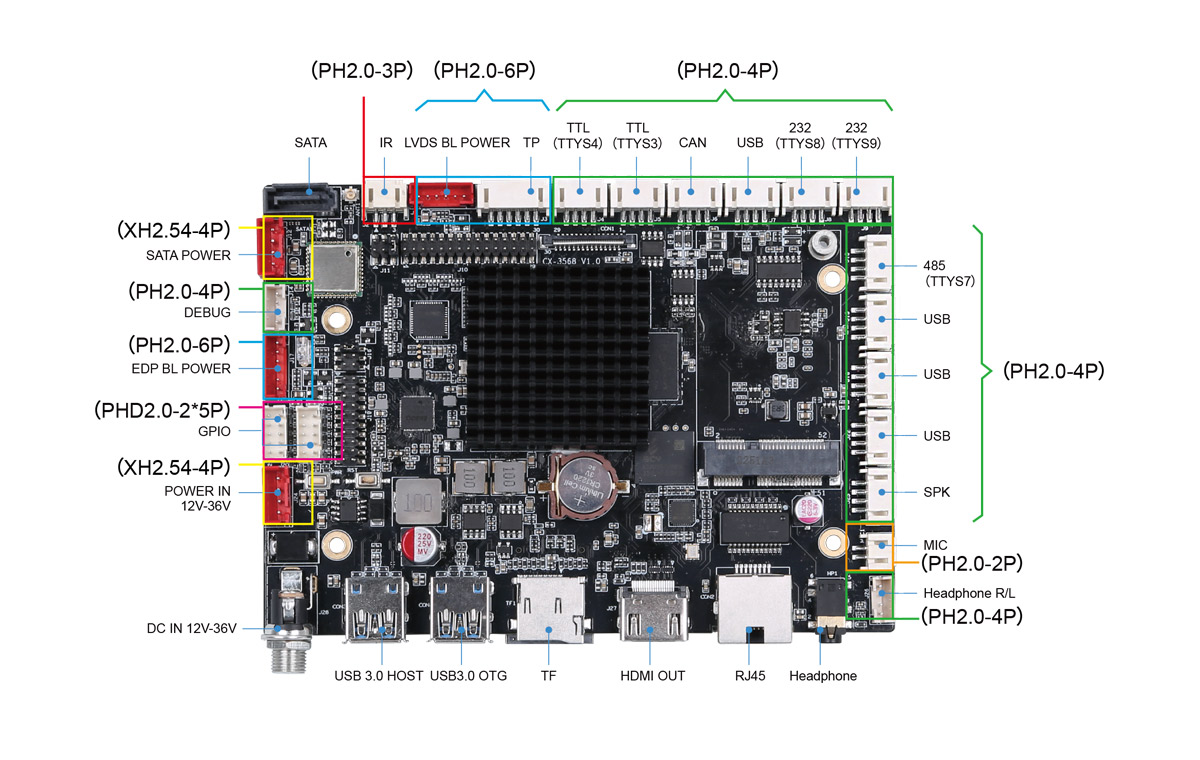

![Touchfly CX3568-A Motherboard]( /images/Touchfly-CX3568-A-Motherboard.jpg )
About CX3568-A
Touchfly CX3568-A adopts rockchip RK3568 quad-core 64-bit high-performance Cortex-A55 processor som soc linux ubuntu debian system nas cluster mini itx single board computer
![About CX3568-A](https://www.touchflyboard.com/wp-content/uploads/2023/06/660-500.jpg)
![rk3568](/images/RK3568-A.jpg)
Self-developed RK3568 SBC
The new RK3568 motherboard is equipped with a quad-core 64-bit high-performance Cortex-A55 processor with a main frequency of 2.0GHz, stronger computing power, better performance and multi-tasking operation without lag. The combination of 2GB+32GB is standard configuration, and different storage expansion schemes are provided.

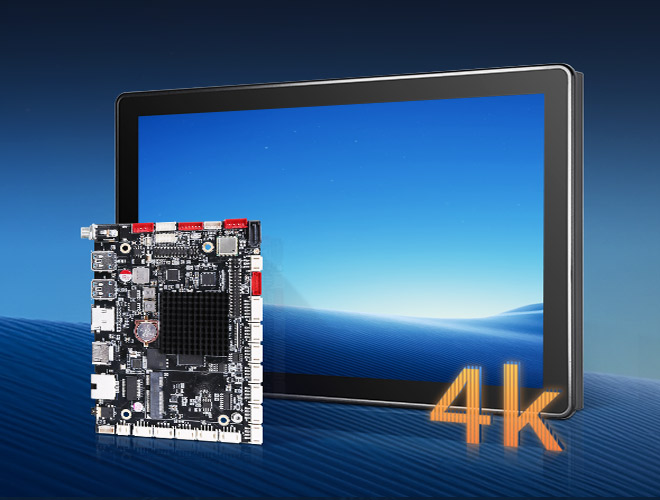

Support 1080P 4K Decoding
Integrated Mali-G52 2EE GPU, supports OpenGL ES1.1/2.0/3.0/3.2 OpenCL2.0, Vulkan1.1, etc,
high-definition picture quality, smooth display, calmly respond to complex image processing requirements.
high-definition picture quality, smooth display, calmly respond to complex image processing requirements.
![About CX3568-A](/images/RK3568-4k-display.jpg)
![Ethernet Adaptive Network Port](/images/Ethernet-Adaptive-Network-Port.jpg)

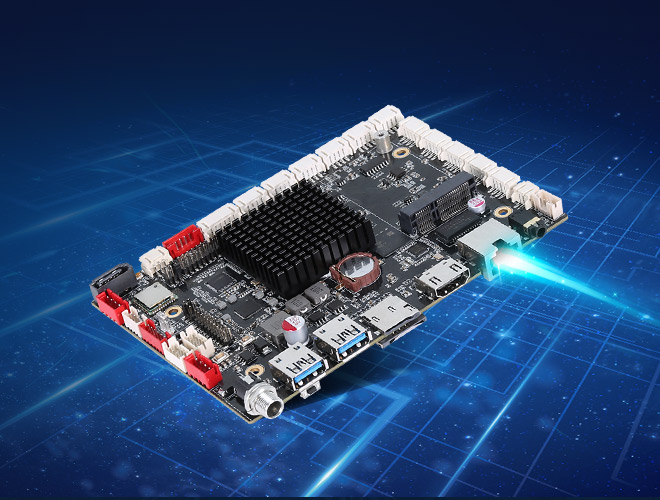

Ethernet Adaptive Network Port
Ethernet adaptive RJ45 network port, integrated 4G, WiFi 2.4G Bluetooth 5.2 and other wireless communication technologies can meet the requirements of high-speed network and multi-machine networking application scenarios.
![Gigabit Adaptive Network Port](/images/Interface-Expansion.jpg)

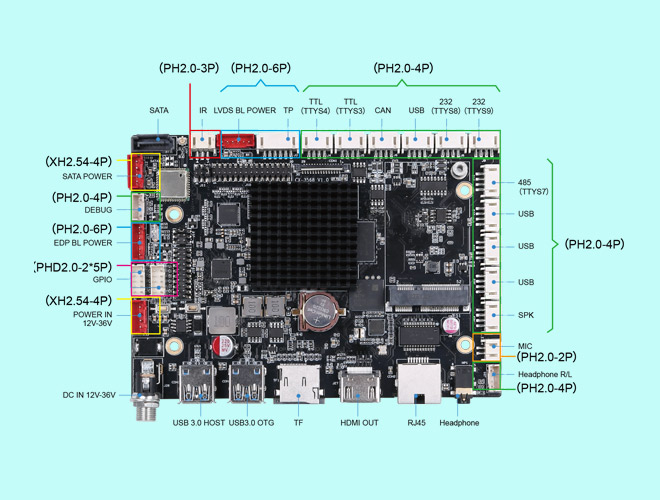

Support Interface Expansion
Rich display and peripheral interfaces, integrated eDP/MIPI/LVDS/HDMI and other screen interfaces, support dual display with 1 CAN port onboard Mini PCIe, USB3.0, SATA3.0 and other high-speed interfaces, support a variety of peripheral connections Strong scene expansion.
Multiple Operating System Optional
Run Android12.0, adapt to linux\ubuntu\debian. Provide system call interface API reference code and technical support, flexible custom development.
![CX3568-OS](/images/CX3568-OS.jpg)
![Multiple security protection](/images/Multiple-security-protection.jpg)

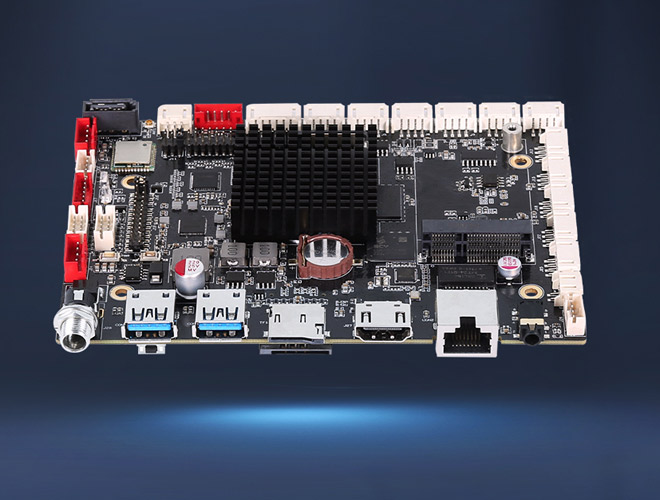

Multiple Security Protection
Meet wide temperature (-10℃~60℃), wide voltage (DC12V~36V), EMI/EMC level anti-interference, ESD standard anti-static. Independent research and development of motherboards, selected parts, and technical endorsement.
