With the dense urban population, frequent industrial and commercial activities, and the continuous expansion of infrastructure, the pressure on security is constantly increasing. Traditional human – powered security has many bottlenecks in terms of scene coverage, cost – efficiency, and continuous operation, leading to frequent public safety incidents. There is an urgent need for intelligent robot technology to provide strong support.

In response to this demand, an emergency rescue equipment manufacturer has collaborated with Touchfly to develop a security robot for scenarios such as underground parking lots, commercial centers, large warehouses, office parks, gas stations, and households. Integrating key technologies such as 5G, AI, sensors, and autonomous navigation, this robot can effectively fill the gap in manual inspections and safeguard urban safety.

The focus of security lies not in merely detecting problems but in resolving them. Therefore, in addition to the “detection→warning” functions of a regular inspection robot, the customer’s security robot is also equipped with automatic emergency response modules for tasks such as fire extinguishing and disinfection. This places stringent demands on the performance of its core control component—the embedded mainboard.

• Integration Capability: The robot achieves environmental perception and motion control through components like cameras, radars, ultrasonic sensors, and motor drivers. The mainboard must have abundant expansion interfaces to enable control integration.
• Data Processing: As the robot needs to handle real-time data from multiple sensors, the mainboard should possess powerful data processing capabilities for multitasking in parallel.
• AI Computing Power: The robot requires AI computing power to support functions such as image recognition, trajectory optimization, and emergency detection, thereby enhancing the accuracy of identification and response efficiency.
• Storage and Networking: The robot needs to transmit and store image/video streams in real time and ensure a stable connection with the control center or cloud platform.
• Stability: Facing the challenges of the robot’s mobile power supply and working environment, the industrial control mainboard must balance power consumption and performance while providing strong environmental adaptability.

With its powerful computing performance and 5G+AI intelligent support, the Touchfly motherboard CX-3588 embedded industrial control mainboard has passed project tests and become the ideal choice for supporting applications in customers’ security robots.

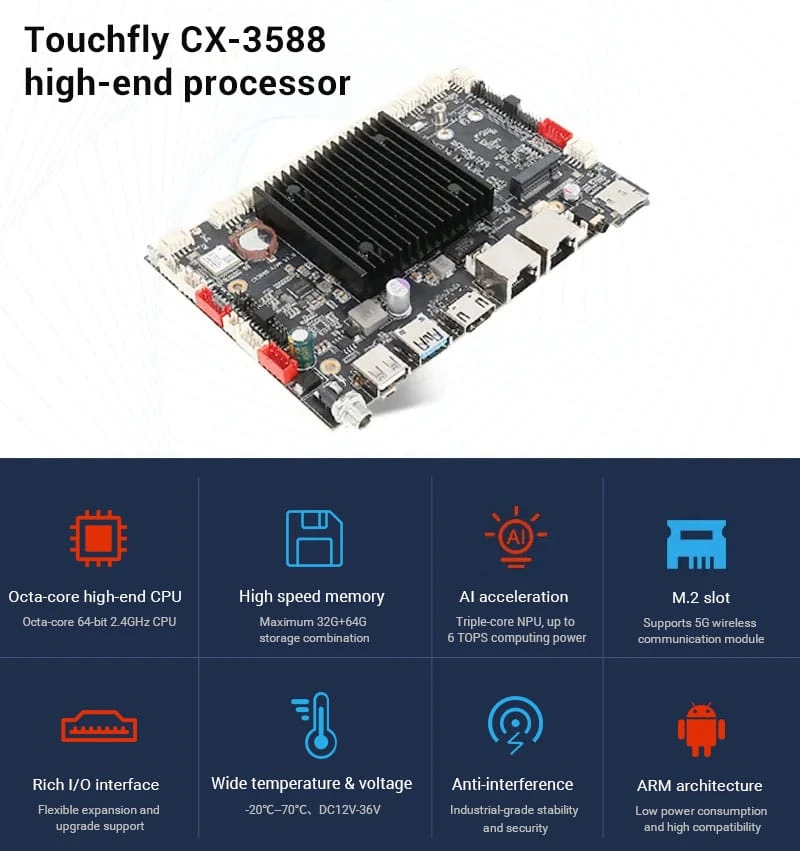

The mainboard CX-3588 is equipped with the Rockchip® RK3588 octa – core processor, with a main frequency of up to 2.4GHz. It can efficiently manage the task processes of robots, such as sensor data collection, navigation path planning, motion control, and obstacle avoidance. Integrated with the ARM Mali G610 MP4 graphics processing unit and an NPU with 6 TOPs of AI computing power, it can quickly process image and video stream data collected by cameras, run AI visual recognition, image analysis, and algorithm optimization, significantly enhancing the inspection efficiency and intelligence level of robots.

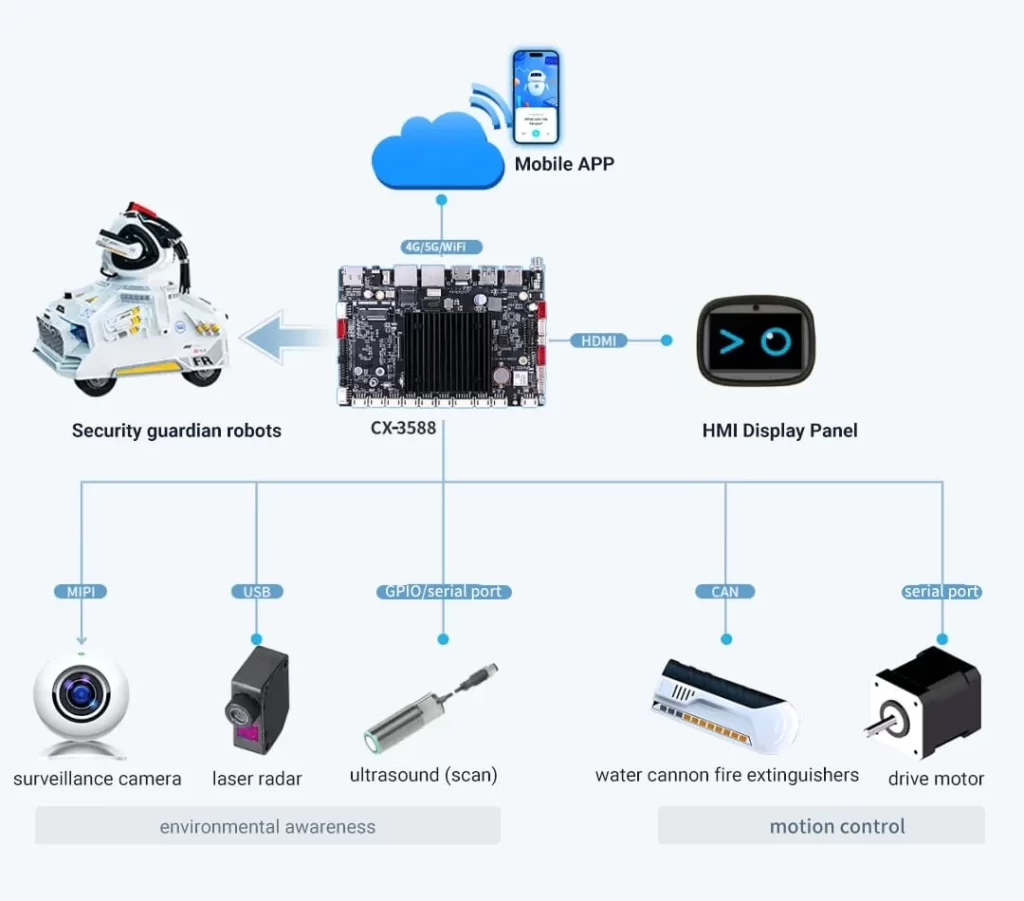

The CX-3588 mainboard is equipped with high-speed interfaces such as MIPI Camera, USB, COM, CAN, and GPIO. It supports HDMI/LVDS/EDP/MIPI output, enabling simultaneous connection to multiple high-definition cameras, lidar, ultrasonic sensors, motor drivers, HMI modules, etc. This allows for all-round environmental perception, motion control, and interactive applications.

The CX-3588 features a high-speed storage combination of up to 32GB + 258GB, ensuring high transmission rates and algorithm response, while also supporting local storage of inspection records. It is equipped with 2 Gigabit Ethernet ports and supports various communication methods such as M.2 5G modules, WiFi 6, and Bluetooth, which are applied to mobile APP video monitoring and remote scheduling, guaranteeing high-speed and low-latency communication.

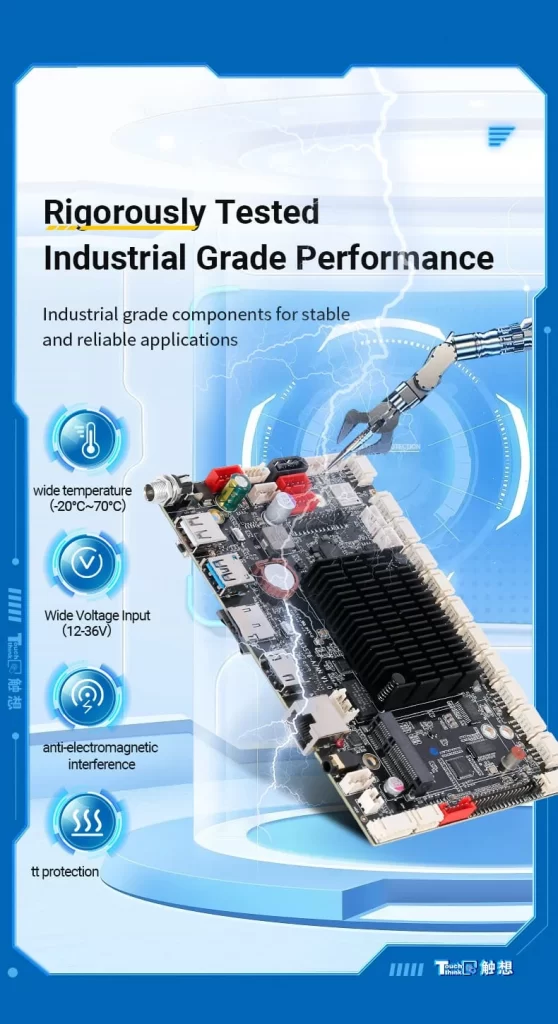

Developed based on the ARM low-power architecture, the CX-3588 can reduce the battery life pressure of robots. The motherboard is covered with a three-proof coating, eliminating concerns about corrosion and moisture. It also has industrial-grade protections such as a wide temperature range of -20℃~70℃, wide voltage range of DC 12V-36V, anti-electromagnetic interference, anti-static, and anti-vibration capabilities, providing 24/7 uninterrupted operation guarantee for customers’ security and guarding robots.

Thanks to its excellent comprehensive performance, the Touchfly CX-3588 motherboard provides customers’ robots with a super powerful “brain”, enabling them to efficiently and intelligently complete core tasks such as environmental perception, autonomous navigation and obstacle avoidance, data analysis and transmission. It is an ideal choice for realizing unmanned inspection.
