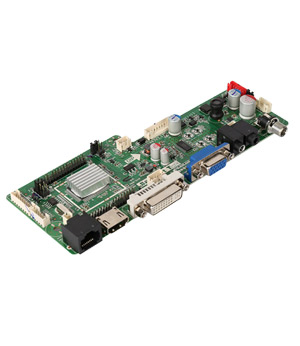

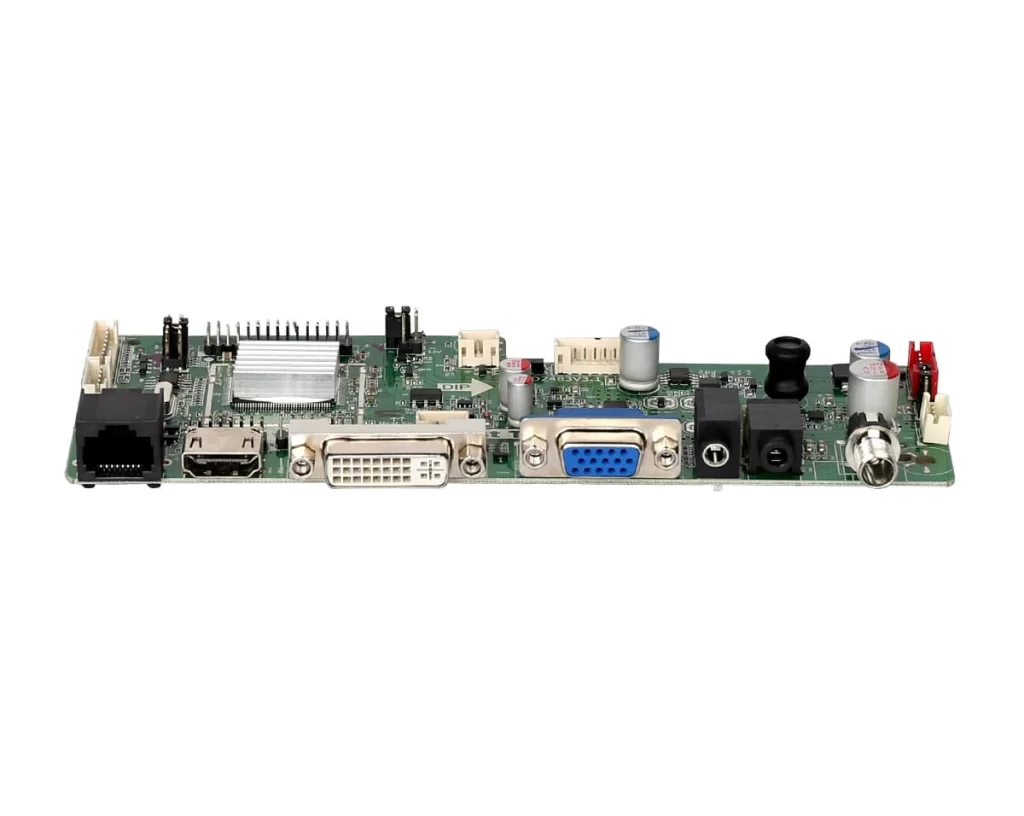

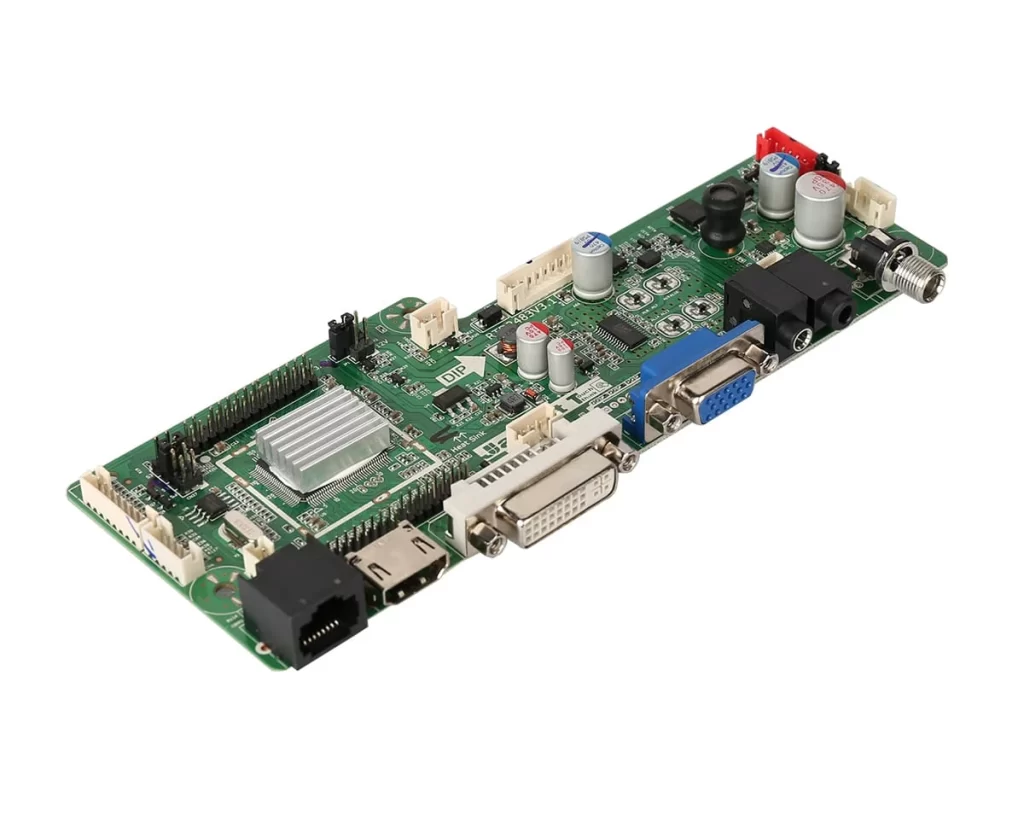

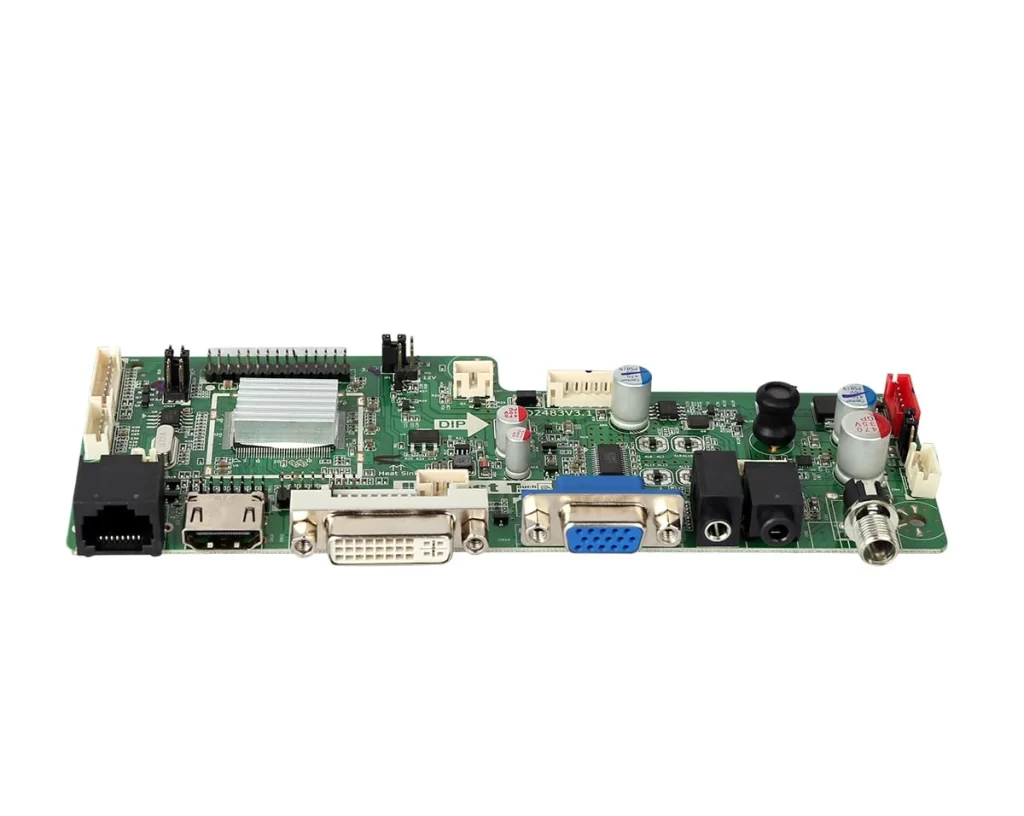

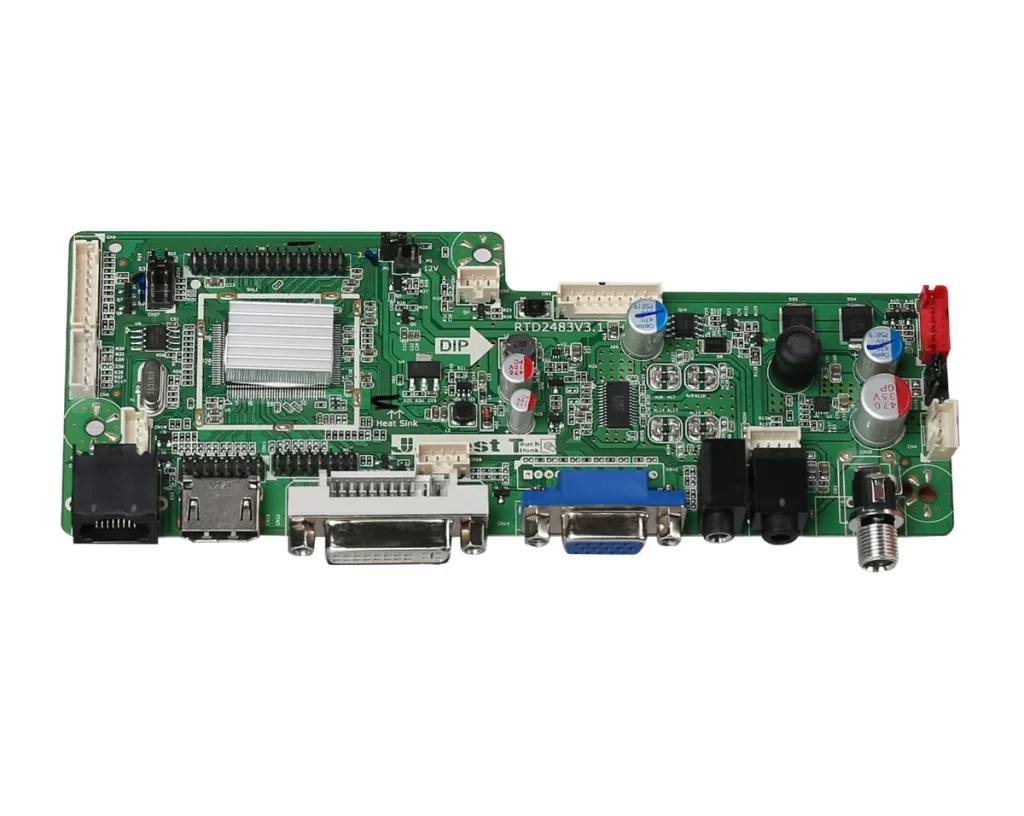

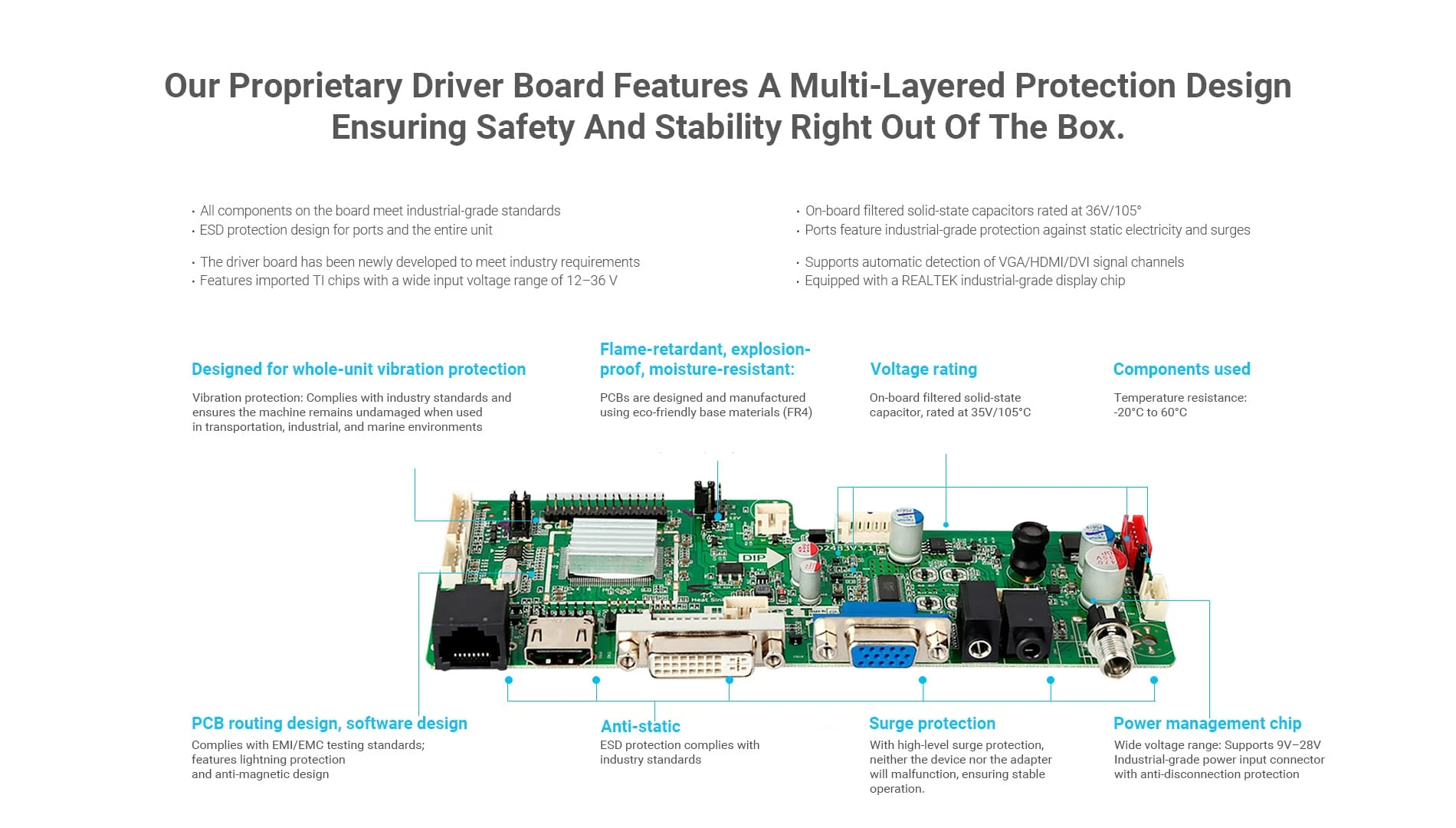

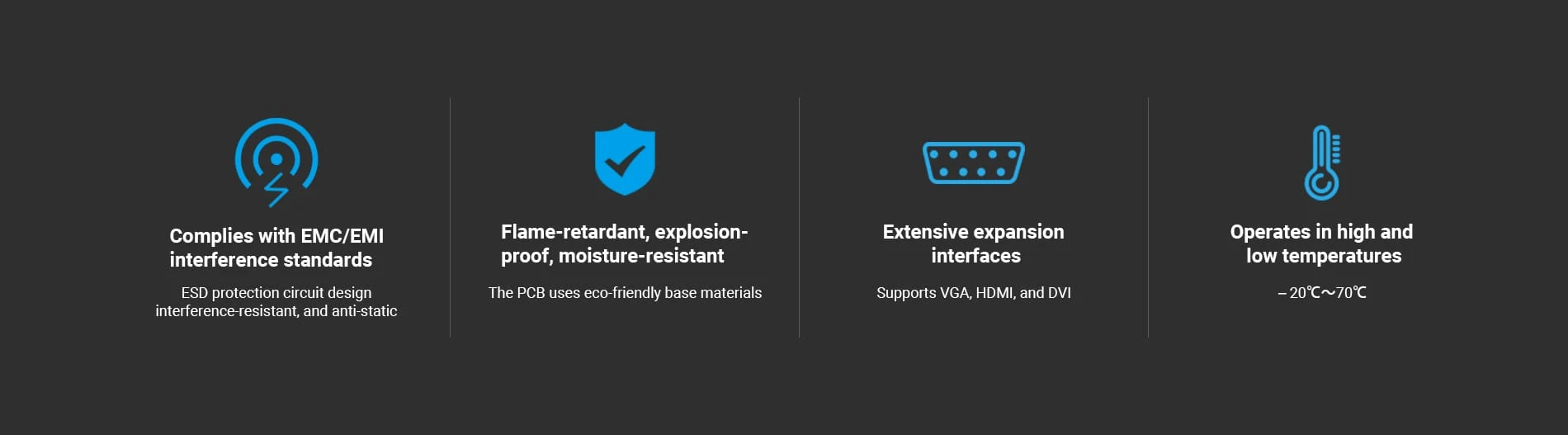

Touchfly CX-2513 Display Driver Board Fully enclosed dust-proof design Anti-interference low power consumption small heat generation.

Driver board
Fully enclosed dustproof design
Anti-interference/Low power consumption/Low heat generation
Stable performance, supports 24/7 operation

Manufacturer

Touchfly

Motherboard Model

CX-2513

Dimensions

167 mm × 70 mm × 17 mm

Chip Solution

Realtek (Taiwan) RTD2513A-CG

LVDS

Supports 1920*1080 @ 60Hz LCD panels.

eDP

HDMI Input

Supports 1080P @ 120fps and 4K @ 30fps input.

DP Input

DVI Input

DVI-I interface input.

VGA Input

VGA signal input; supports firmware upgrades via DEBUG port.

Backlight Control

12V output via a red 6-pin PH2.0mm connector; supports two PWM dimming modes.

Panel Voltage

Panel power supply; selectable via jumper cap (3.3V, 5V, or 12V).

USB

USB3.0*2(HOST*1,OTG*1)

Speaker

Built-in 4-pin PH2.0mm header (8Ω, 2W).

MIC

Audio Input/Output

Universal 3.5mm audio input jack.

Rear I/O Ports

DC Power / HDMI / DVI / VGA / Audio In / Audio Out / RJ45 (Touch Interface).

Buttons

7-button layout (compatible with 5-button configurations); built-in 7-pin PH2.0mm connector header.

DC Power Supply

Wide Voltage Range: 12V–36V DC input; features a 5.5*2.1mm threaded DC jack and a built-in red 4-pin PH2.0mm header (internal input interface).

Power Adapter

24V/1.5A (Standard); 24V/2.5A (High Brightness/High Power models); 5.5*2.1mm plug with threading.

Operating Temperature

Operating Temperature: -20°C to 70°C.

Storage Temperature

Storage Temperature: -30°C to 80°C.

Relative Humidity

5% to 95% Relative Humidity (Non-condensing).

ESD

ESD Design Requirements: ±8 kV Contact, ±15 kV Air

Surge Protection

Surge Protection Design (Incorporates TVS)

Send RFQ

Motherboard Model: CX-2513

Required fields are marked *, We’ll respond within 12 hours.

stability	Antistatic	Contact voltage 4KV – Air voltage 8KV (customizable ≥15KV)
	Vibration protection	Compliant with industry standards
	Anti-interference	EMC/EMI immunity
	Moisture-proof and corrosion-resistant	Meets basic moisture-proof and corrosion-proof standards

System	Software Functions	1. Automatically detects the signal source (DVI, VGA, or HDMI) upon signal input. 2. The screen automatically turns off 15 seconds after displaying a blue screen (indicating no signal). 3. The OSD menu supports a black-and-white display option. 4. Supports resolutions up to 1920×1080 / 1920×1200 @ 60Hz. 5. Supports multiple languages (English is set as the default). 6. Supports the DDC/CI protocol. 7. DDC/CI EDID 1.3 support.
Interface parameters	DC port	1*DC 2.1 with threaded input 12V-36V
	HDMI	Supports HDMI data output, up to 1080P.
	VGA	Supports VGA (the resolution corresponding to the size of the optimal resolution).
	TWO	Supports DVI digital signals (the resolution corresponding to the size of the optimal resolution).
	Touch interface	RJ45 interface standard (defined as USB)
	Headphone jack	3.5mm standard interface
	audio interface	Audio I/O
	Support for extensions	Multiple industry interfaces support customization

Product reliability	Operating temperature	-10 °C ~ 60 °C (customizable to -30 °C ~ 80 °C)
	Storage temperature	-20 °C ~ 70 °C
	relative humidity	Humidity: 95% Non-Condensing
	Mean Time Between Failures (MTBF)	7*24H
