[New Release] Rockchip RK3566-based Low Power Consumption Embedded Android Industrial Motherboard

Overview

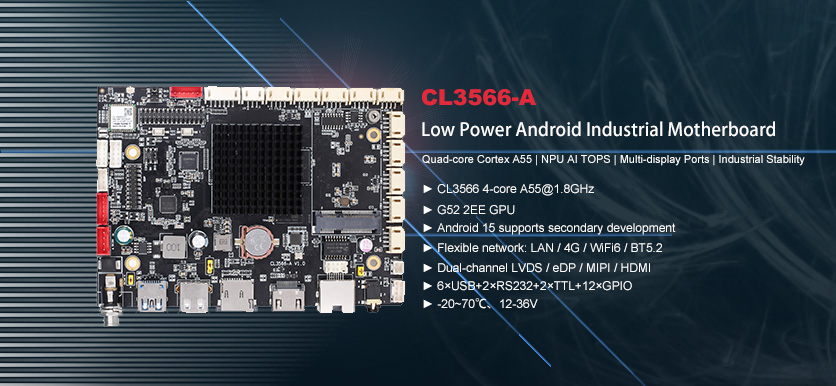

CL3566-A is a low-power embedded Android industrial control motherboard built on Rockchip RK3566 chip. It adopts a 4-core 64-bit Cortex®-A55 CPU (1.8GHz main frequency) and ARM Mali-G52 2EE GPU. Equipped with an integrated dedicated NPU, it delivers 1 TOPS AI computing power and supports the development of lightweight AI applications. Featuring reliable and sufficient performance, complete computing interfaces, balanced expandability and procurement cost, it enables controllable overall project expenditure. This board is suitable for industrial control, artificial intelligence, smart commercial display, self-service terminals, smart retail and other scenarios.

  • Rockchip RK3566 Quad-core A55 @1.8GHz, 22nm advanced process
  • LPDDR4 2/4/8GB + eMMC 16–256GB optional
  • Integrated 1TOPS dedicated NPU, supports lightweight AI application development
  • Dual-channel LVDS, eDP, MIPI, HDMI display output interfaces
  • Supports Android 15.0 / Linux 6.1 / Debian 12 / Ubuntu 24.04
  • Onboard WiFi 6 / Bluetooth 5.2, Mini-PCIe socket for 4G expansion
  • 6×USB + 2×RS232 + 2×TTL + 1×RS485 + 12×GPIO
  • -20~70℃ wide temperature range, 12–36V wide voltage input

What Touchfly motherboard brings

Quad-core High Frequency for Enhanced Performance

Rockchip RK3566 quad-core processor @1.8GHz. Optional LPDDR4 2/4/8GB + eMMC 16–256GB, stable & responsive.

Full-format Decoding & Ultra-fine Display

ARM Mali-G52 2EE GPU enables 4K@60Hz video codec and output, ideal for smart signage, commercial displays and HMI applications.

Multi-OS Compatibility, Flexible Development

Preloaded Android 15.0; supports Linux 6.1, Debian 12, Ubuntu 24.04. System call API reference code available for customer upper-layer APP development.

Versatile Display Interfaces, Wide Device Compatibility

Supports dual LVDS, eDP, MIPI and HDMI interfaces, fitting diverse display panels and supporting device upgrade and multi-screen applications.

Full Network Coverage, Stable Data Transfer

Onboard WiFi6 + BT5.2, Mini-PCIe for 4G expansion plus 1×100M Ethernet. Multiple network modes deliver low-latency, real-time data transmission.

Practical I/O Expansion, Low Total Cost

6×USB, 2×RS232, 2×TTL, 1×RS485, 12×GPIO. Supports touch panels, peripherals & industrial communications for controlled project budget.

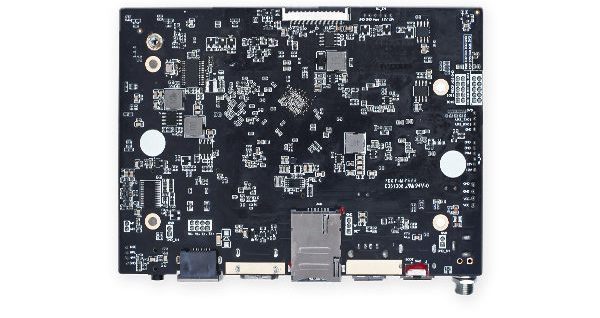

Back of CL35566 motherboard

Industrial Protection, Safe & Reliable

  • Wide Temperature Range (-20℃ ~ 70℃)
  • Wide Voltage Input (DC 12V–36V)
  • EMI/EMC Immunity
  • ESD Protection
  • Anti-vibration
  • IP65-rated dustproof and waterproof protection.
