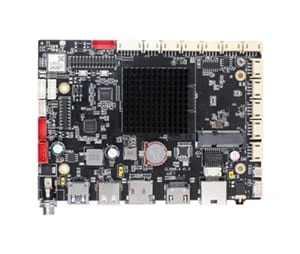

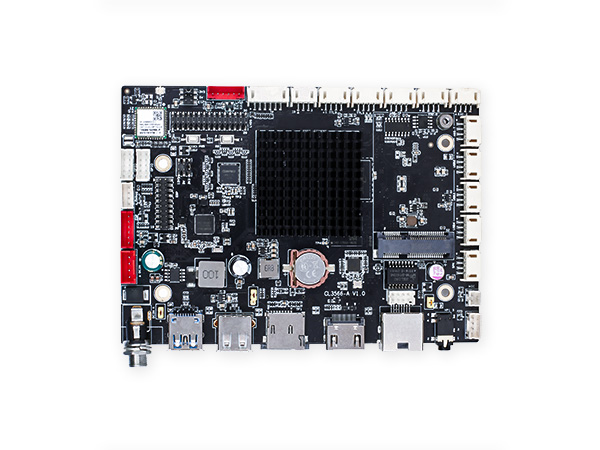

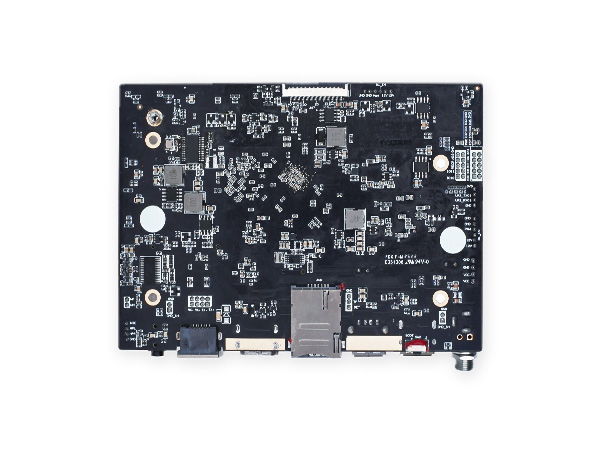

RK3566 Industrial Android Mainboard, Low Power Consumption, 4K Decoding, NPU AI Edge Computing
The CL3566-A is a high-performance, low-power Android series processor featuring 22nm advanced manufacturing technology. It boasts a 4-core 64-bit Cortex-A55 architecture with a clock speed of up to 1.8GHz, a dedicated NPU delivering 1TOPS AI computing power for lightweight AI development, and a GPU powered by ARM Mali-G52 2EE. The processor supports 4K video encoding and decoding, along with 4K display output.
Send RFQ
Description
The CL3566-A is compatible with Android 15.0, Linux 6.1, Debian 12, and Ubuntu 24.04. It features dual LVDS, eDP, MIPI, and HDMI display outputs, along with MIPI Camera, 100Mbps Ethernet, and a built-in universal backlight board interface with a screen voltage jumper, supporting diverse display types. With enhanced performance, faster processing, and expanded connectivity, it stands as the optimal choice for human-machine interaction, smart terminals, and industrial control projects.
Features
- Multi-display interface: Dual LVDS, eDP, MIPI, HDMI and other display output interfaces.
- Extensive expansion interfaces: 6 USB ports (1 USB3.0 HOST + 1 USB 2.0 OTG Type-A), 4 USB 2.0 HOST sockets, 2 RS232 sockets, 2 TTL sockets, 1 RS485 socket, and 12 GPIO pins to meet diverse peripheral requirements.
- Multiple network interfaces: 1*100M Ethernet port, single-band WIFI, BT5.2 support, and built-in MINI PCI-E 4G port.
- High definition: Supports up to 4K/60Hz video output and LCD displays with LVDS, eDP, MIPI, or HDMI interfaces.
- Customized for Android, this system provides API reference code for system calls, fully supporting the development of customer applications. It also supports various mainstream touch screens, including infrared, optical, capacitive, resistive, and touch film.
CX3588-G-S Industrial Motherboard Specifications
| Type | Paramters |
|---|---|
| CPU | RK3566 is a 64-bit high-performance CPU Featuring a quad-core 64-bit Cortex-A55 architecture with a clock speed of up to 1.8GHz; |
| GPU | Equipped with ARM Mali-G52 2EE graphics processor |
| RAM | 2GB/4GB/8GB LPDDR4 available in any combination |
| Storage | EMMC 16GB/32GB/64GB/128GB/256GB can be combined freely |
| Built-in ROM | 4KB EEPROM |
| Decoding resolution | Supports up to 4K/60Hz |
| OS | Android15.0，Linux6.1, Debian12, Ubuntu24.04 |
| Play mode | Supports loop, timer, and insert playback modes. |
| Network | 4G, Ethernet, WiFi/Bluetooth support, wireless peripheral expansion |
| Picture Format | Support BMP、JPEG、 PNG、GIF |
| Video Playback | Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4、etc. |
| USB interface | 1 USB3.0 HOST port and 1 USB2.0 OTG port on the 1st port |
| 4 internal USB2.0 ports | |
| Mipi Camera | Not have |
| Mipi Output | 1 *MIPI LCD interface with 40-pin FPC connector |
| Gorge Line | 2 *RS232 sockets, 2 *TTL sockets, 1 *RS485 socket |
| GPS | External GPS (optional) |
| CAN | Not have |
| Wi-Fi、 BT | Built-in 2.4G WIFI 6 and Bluetooth 5.2 |
| 4G | 4G module interface with built-in MINI PCIe |
| Ethernet | 1*100M Ethernet port |
| TF block | Support TF card |
| LVDS output | 1 x dual LVDS output |
| eDP output | 1*4-lane eDP interface |
| HDMI output | 1*standard HDMI 2.0 output port |
| Audio output | Built-in dual-channel power amplifier with 4R/10W per channel and 8R/5W per channel |
| Headphone Jack | Built-in 3.5mm 4-pin headphone jack |
| RTC(Real Time Clock) | Support |
| Timing Switch | Support |
