X86 Embedded Motherboard | Industrial-Grade Embedded Computing Board
Overview
Our X86 Embedded Motherboard is a compact, industrial-grade single-board computing solution built for 24/7 stable operation in harsh embedded and edge environments. Adopts mature Intel X86 architecture with full Windows and Linux system compatibility, eliminating software migration barriers for industrial projects. Featuring rich expandable I/O, wide-temperature tolerance, low power consumption, and long-lifecycle supply, this X86 embedded motherboard serves as a reliable core hardware for industrial automation, edge computing, intelligent terminals, and industrial IoT equipment.
Core Advantages of X86 Embedded Motherboards
X86 Ecosystem & Ultra Compatibility
Natively supports Windows 10/11, Linux, Ubuntu, and industrial configuration software. Compatible with most industrial desktop applications, saving massive software development and porting costs compared with ARM solutions.
Industrial-Grade Stability & 24/7 Operation
Designed for continuous industrial operation, anti-interference circuit design, wide working temperature range (-20℃ ~ +60℃), adapts to factory, outdoor, vehicle and other complex scenarios.
Rich Expandable I/O Interfaces
Equipped with multi-Gigabit Ethernet, multiple RS232/RS485 serial ports, USB3.0/2.0, HDMI/EDP display, SATA/M.2 storage interfaces, easily connecting sensors, cameras, PLCs and peripheral devices.
Compact Size & Flexible Installation
Multiple form factors (3.5-inch / Mini-ITX) support fanless passive cooling, low power consumption, perfect for space-limited embedded device integration.
Long Lifecycle & Stable Supply
Extended industrial product lifecycle, stable batch supply and technical support, matching long-term industrial equipment iteration cycles.
Touchfly X86 Embedded Motherboards
Model: CX-J1900B >>
Size: 150mm*110mm*27mm
CPU: Intel® Celeron J1900
RAM: DDR3L, Up to 8GB
Storage: 1 * SATA2.0 + 1 * mSATA
Network: 4G, Ethernet, WiFi/BT5.0, Wireless
Display: LVDS,EDP,VGA, HDMI
Interfaces: USB 2.0/3.0, TTL, RS232/RS422/RS485, CAN
Model: CX-J4125 >>
Size: 160mm*110mm*27mm
CPU: Intel® Celeron J4125
RAM: Support DDR4-2666 MHz
Storage: 1 * SATA3.0 + 1 * mSATA +8MB Flash
Network: 4G, Ethernet, WiFi/BT5.0, Wireless
Display: LVDS,EDP,VGA, HDMI
Interfaces: Can be customized.
Decoding Resolution: Supports up to 4k/60HZ
Model: CX-J6412 >>
Size: 160mm*110mm*27mm
CPU: Intel® Celeron J6412
RAM: Support DDR4-3200 MHz, Up to 16GB
Storage: 1 * SATA3.0 + 1 * mSATA
Network: 4G, Ethernet ( 2-way 1000M Ethernet interface ), WiFi/BT5.0
Display: LVDS,EDP,VGA, HDMI
OS: Windows, Ubuntu, CentOS, RedHat, Debian
Serial Port: 6-way serial socket: 1-way RS232; 4 TTL；One RS485/RS422/ full RS232 is optional.
Model: CX-I3/I5/I7 >>
Size: 160mm*110mm*27mm
CPU: Intel® I3/I5/I7
RAM: Support 2133/ 2400/ 2666/ 2933/ 3200MHz, Up to 32GB
Storage: 1 * SATA3.0 + 1 * mSATA + 1*M.2
Internet: WiFi/BT, 3G/4G/5G, Dual-Gigabyte 1000Mbps port
Display: LVDS,EDP,VGA, HDMI
OS: Windows, Ubuntu, CentOS, RedHat, Debian
I/O: USB 2.0/3.0, GPIO, RS232/422/485
Application Scenarios
The X86 embedded motherboard is widely deployed in commercial and industrial intelligent equipment, covering almost all scenarios that require stable Windows/Linux embedded computing:
Industrial Automation
HMI touch panels, CNC machine controllers, machine vision inspection, AGV/AMR robots, production line data acquisition terminals
Edge Computing & Industrial IoT
IoT gateway, edge AI analysis box, on-site data processing and cloud transmission terminal
Self-service & Commercial Terminals
Kiosks, POS machines, vending machines, queue calling terminals, digital signage and interactive display devices

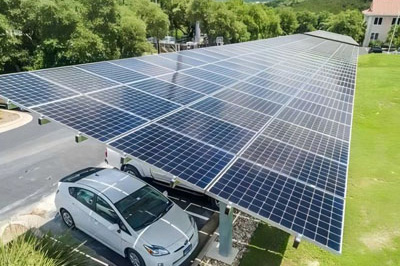

Smart Transportation & New Energy
On-board monitoring hosts, traffic control terminals, EV charging piles and energy storage monitoring equipment
Medical & Precision Instruments
Medical imaging equipment, detection analyzers, industrial testing and measurement instruments.
Edge Computing & Industrial IoT
Multi-channel video decoding, AI face recognition terminals and industrial security management hosts.
Different from consumer motherboards, our X86 embedded motherboard focuses on industrial reliability, interface scalability and software compatibility. It retains the powerful ecosystem advantages of X86 architecture while achieving miniaturization and low power consumption, perfectly balancing performance, stability and cost for industrial embedded projects.
Customization & Service
We provide professional OEM/ODM customization services, including interface adjustment, function tailoring, system pre-installation, logo printing and batch customized solutions. Stable mass supply, fast delivery and professional after-sales technical support help customers quickly launch industrial embedded products.
