Touchfly: Get to Know ARM Industrial Motherboards

An ARM industrial motherboard is a single board computer (SBC) built around an ARM-based processor and engineered for harsh, always-on environments. Unlike consumer boards, it is designed to run 24/7 inside factories, outdoor cabinets, and embedded devices without failure.

Main ARM Chip Platforms

Choosing the right ARM SBC starts with the SoC (system-on-chip). Here are the platforms most common in industrial designs:

Rockchip Processor

Allwinner Processor

MediaTek Processor

RockchipRK3288/RK3399/RK3568/RK3576/RK3588
AllwinnerA133, H618, A40i, H313
MediaTekMT8516、MT8788

Common Interfaces & Protocols for ARM Industrial Motherboards

Physical Interfaces

  • Serial: RS232, RS485, TTL-UART (Most widely used for industrial data acquisition)
  • Bus: CAN / CAN-FD, I2C, SPI, PWM, GPIO (DI/DO Digital Input & Output), ADC analog acquisition
  • Network: Gigabit / 100M Ethernet RJ45 (PoE optional), Wi-Fi, Bluetooth, 4G/5G module socket (Mini PCIe / M.2), SIM slot.
  • Display: HDMI, eDP, LVDS, MIPI-DSI (display interface); MIPI-CSI camera interface
  • USB: USB2.0 / USB3.0, Type‑C OTG
  • Storage: eMMC, TF Card (MicroSD), SATA (available on some high-end models)
  • Audio: I2S, 3.5mm audio jack, Speaker, MIC(microphone)
  • Power: Wide-range DC input (9~24V)

Communication Protocols

  • Serial Protocols: Modbus RTU (the mainstream for RS485)
  • Ethernet Protocols: TCP/IP, Modbus TCP; high-end models support EtherCAT, Profinet, EtherNet/IP
  • Low-level Bus Protocols: CAN 2.0A/B, CAN-FD, I2C, SPI
  • Upper-layer IoT Protocols: MQTT, HTTP, OPC UA, SNMP
Inquire ARM Motherboards

Where ARM Industrial Motherboards Are Used

Industrial ARM motherboard for self-service Kiosks

ARM industrial SBC for industrial automation

Industrial ARM board for IoT gateway

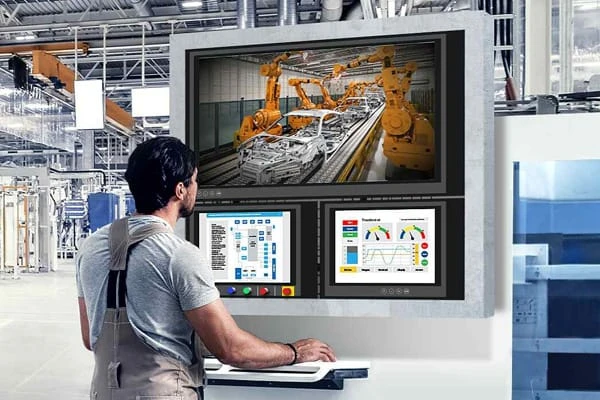

Industrial ARM motherboard for HMI

ARM SBC for edge computing

ARM SBC for edge computing

ARM board for medical device

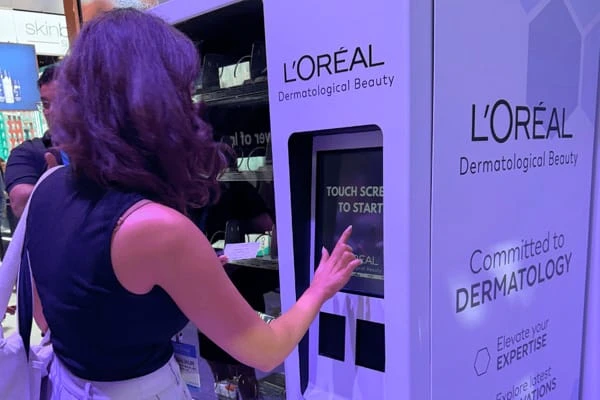

ARM board for Vending Machine

Industrial ARM board for IoT gateway

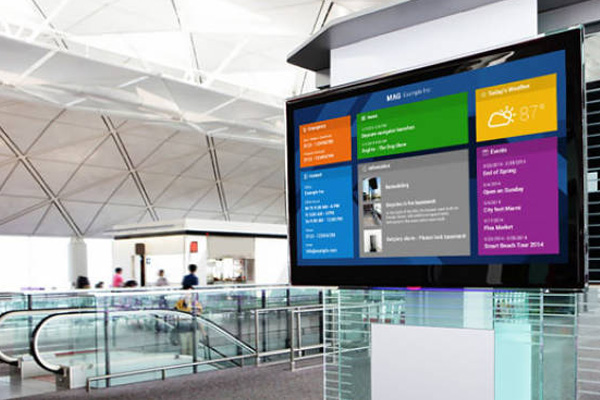

ARM SBC for digital signage

ARM SBC for digital signage

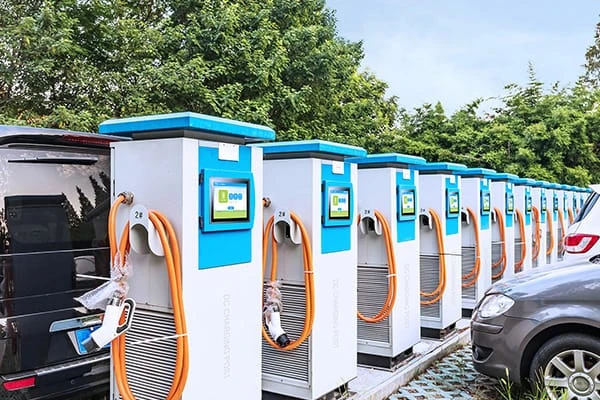

ARM board for EV charging station

ARM board for EV charging station

How Buyers Should Choose

When you search to buy an ARM industrial motherboard, you are really evaluating a partner, not just a part. Consider:

  1. Manufacturer vs. trader. A direct ARM SBC manufacturer / factory controls quality and lead time. TouchThink is a professional ARM industrial motherboard manufacturer and supplier with in-house R&D.
  2. OEM / ODM flexibility. Can they customize the ARM board to your mechanical and I/O needs? Look for custom ARM board China capabilities.
  3. Certifications. CE and FCC are the baseline for export.
  4. Lifecycle & support. Industrial projects run for years — confirm long-term supply of the ARM SBC.
  5. Wholesale & MOQ. If you need ARM industrial motherboard wholesale, discuss volume pricing and minimum order quantities upfront.
Request Quotation for ARM Motherboards

Customer Case

Touchfly industrial motherboards have served the world top enterprises: SIEMENS, P&G, FOXCONN, KUCA, KFC, HUAWEI, BYD,ZEISS. Touchfly motherboards are widely used by our customers in the fields of industrial touch screen, industrial control all-in-one computers, and industrial manufacturing.

Touchfly Workshop

Touchfly has a world-class industrial motherboard production workshop. we adopt dust-free workshops to test every index of the products to ensure the precision and efficiency of the products, so as to provide customers with the highest quality and reliable industrial computer motherboards.
