RK3566 Android Industrial Embedded Motherboard 8G RAM 256G EMMC WiFi6 Bluetooth 5.2 Supporting 4K/60Hz

The CL3566-A is a high-performance, low-power Android series processor featuring 22nm advanced manufacturing technology. It boasts a 4-core 64-bit Cortex-A55 architecture with a clock speed of up to 1.8GHz, a dedicated NPU delivering 1TOPS AI computing power for lightweight AI development, and a GPU powered by ARM Mali-G52 2EE. The processor supports 4K video encoding and decoding, along with 4K display output.

CPU

RK3566 is a 64-bit high-performance CPU
Featuring a quad-core 64-bit Cortex-A55 architecture with a clock speed of up to 1.8GHz;

GPU

Equipped with ARM Mali-G52 2EE graphics processor

Internal storage

2GB/4GB/8GB LPDDR4 available in any combination

Built-in memory

EMMC 16GB/32GB/64GB/128GB/256GB can be combined freely

Built-in ROM

4KB EEPROM

Decoding resolution

Supports up to 4K/60Hz

Operating system

Android15.0，Linux6.1 ,Debian12 ,Ubuntu24.04

Playback mode

Supports loop, timer, and insert playback modes

Network support

4G, Ethernet, WiFi/Bluetooth support, wireless peripheral expansion

USB joggle

1 USB3.0 HOST port and 1 USB2.0 OTG port on the 1st port

4 internal USB2.0 ports

GPS

External GPS (optional)

Gorge line

2 *RS232 sockets, 2 *TTL sockets, 1 *RS485 socket

WIFI、BT

Built-in 2.4G/5G WIFI6, Bluetooth support 5.3

Built-in MINIPCIE 4G module interface

TF block

Supports TF card

TF block

Supports TF cards

Video Output

1* dual-channel LVDS port
1*4-lane eDP port
1* standard HDMI2.0 output port
1 *MIPI LCD interface with 40-pin FPC connector

Earphone jack

Built-in 3.5mm 4-joint headphone jack

RTC real-time clock

support

Send RFQ

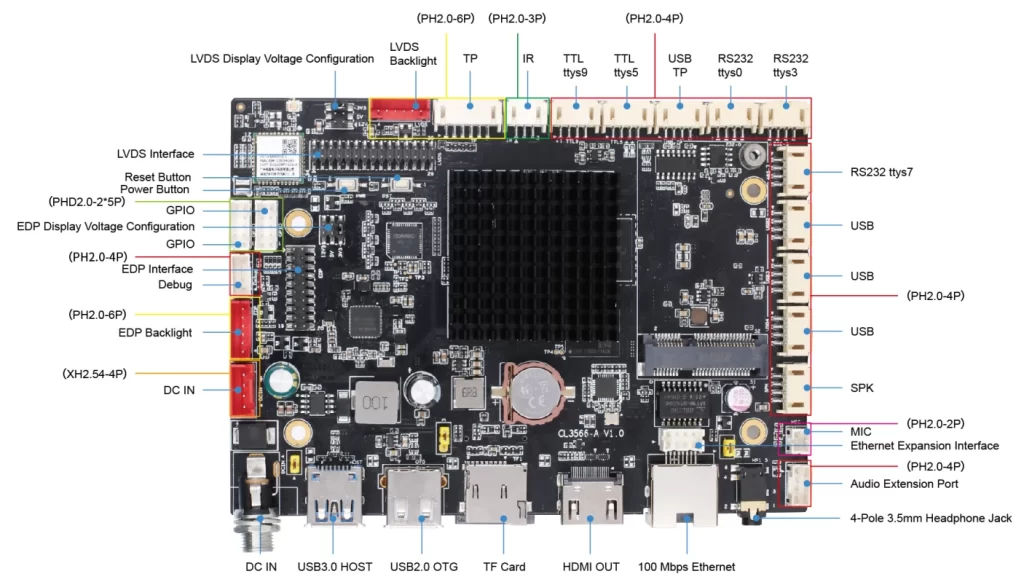

The CL3566-A is compatible with Android 15.0, Linux 6.1, Debian 12, and Ubuntu 24.04. It features dual LVDS, eDP, MIPI, and HDMI display outputs, along with MIPI Camera, 100Mbps Ethernet, and a built-in universal backlight board interface with screen voltage jumper, supporting diverse display types. With enhanced performance, faster processing, and expanded connectivity, it stands as the optimal choice for human-machine interaction, smart terminals, and industrial control projects.
